Professional adapter solutions from LMscope ensure the highest possible image quality with maximum flexibility and versatility: a single LM microscope adapter fits a wide variety of different connections.

Our adapter solutions feature plan achromatic precision optics and can be used with a variety of different microscopes and digital cameras.

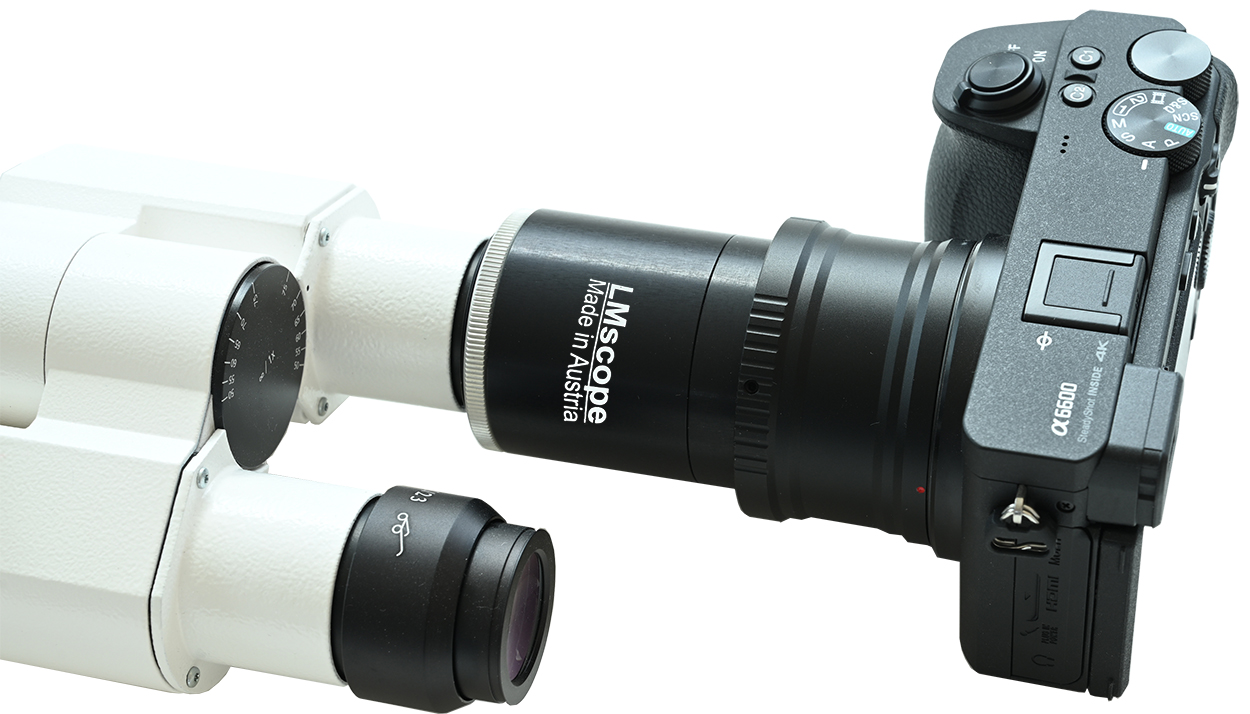

Their modular construction facilitates maximum flexibility because the same adapter solution can be used on different microscopes. LM Digital SLR widefield adapters can be attached to either the phototube or the eyepiece tube (C-mount) of the microscope.

With our LM Digital SLR widefield adapters, the camera can capture the largest possible field of view without any peripheral darkening (vignetting).

The LM Digital SLR widefield adapters are focusable, and they also enable an optical adjustment of the image viewed through the eyepiece with that of the camera (parfocality). Thanks to their uncompromising quality and extraordinary flexibility, our products are used by renowned research institutes and companies all over the world (see here for references).

Overview of key features:

• Precision widefield optics for an extra-large field of view (without vignetting)
• Large lens diameter for even more light gathering power
• Very compact, short design
• Universal C-mount connection or connection for eyepiece tubes with internal diameters of 23.2 mm or 30 mm
• Modular design facilitating maximum flexibility
• Integrated filter holder for optical filters
• Adapter is focusable (the image observed through the eyepiece can be aligned with that of the phototube)

The modular design and additional accessory modules extend the range of functionality:

• Camera bayonet adapter: Changing the bayonet adapter makes it possible to switch to another camera brand at any time. A bayonet adapter is included in the scope of delivery of our adapter solution.

• Adjustment modules for fine-tuning field size or magnification, for example add-on units to double microscope magnification

• Adjustment modules for eyepiece tubes with different internal diameters – we will be happy to provide you with the modules that suit your needs.

• Adjustment modules for different microscopes: LM adapter solutions with C-mount connection can be attached to the 1x C-mount port of a wide range of microscope brands. You can thus continue to use the LM adapter solution even if you switch to a newer microscope.

• The adapter also accommodates optical filters, if required.

​System diagram for adapter solutions with integrated intermediate optics for digital single-lens reflex cameras (DSLR) and mirrorless system cameras (DSLM) with interchangeable lens mount.

The LM SLR widefield adapter features a modular design and can be used on either the phototube of the microscope or in place of one of the eyepieces. To accommodate individual setups, we offer a variety of connection modules, which can also be purchased as add-ons later on.

LM Digital SLR widefield adapters are also equipped with a focusing feature, allowing for an adjustment of the image viewed through the eyepiece with that of the phototube.
